◆Specification
●HD DVB-C(ETSI EN 300 429/ITU J.83 Annex A/C) set top box compliant with MPEG2 and MPEG4 H.264 and H.265 and AVS+
●Compatible with HDTV channels and equipped with HDMI connector
●EPG & DVB Teletext & DVB Subtitles
●Auto search & Blind search & network search function
●Support Media Player
●Support Dexin CAS 5.7 or Dexin COB2.0
Technical Specifications
Core System
Processor : M88Cc6000T/M88CC8201T
(High-performance dual MIPS CPU)
Broadcast tuners: 1 DVB-C
Memory: 8MB Flash SOC Embedded 128MB DDR
STB up grade: Through OTA or USB Disk
Connectivity
Video: HDMl v1.4a
RCA out (CVBs, Audio L/R)
USB: 1xUSB2.0 host device
Tuner & Demodulator
-lnput Frequency :50MHz-860MHz
-Demadulator: 256,128,64,32 and 16QAM demodulation supported
-Symbol rates: 0.45~8.5MBauds

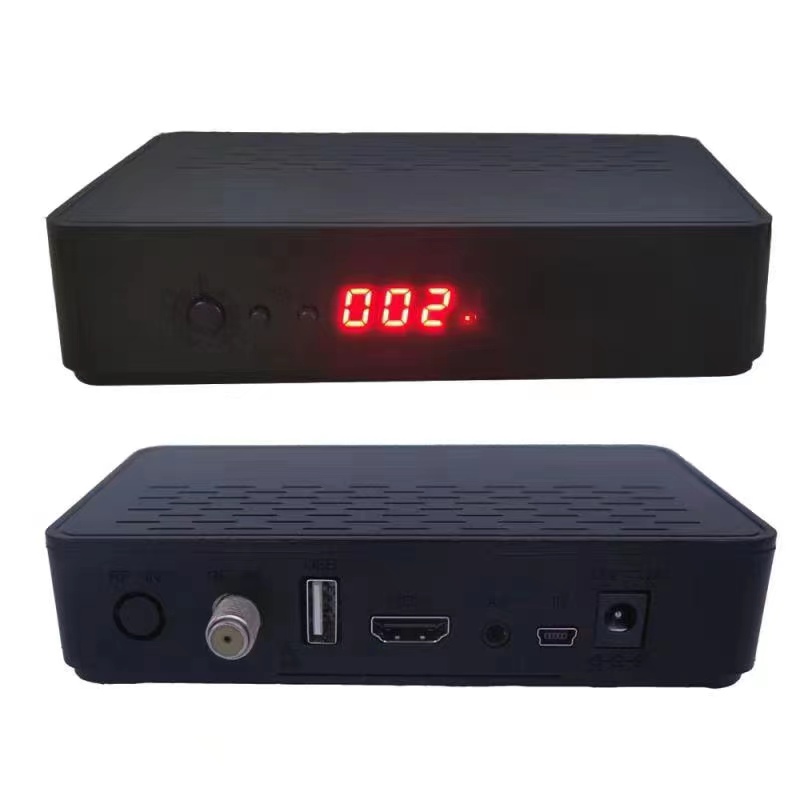

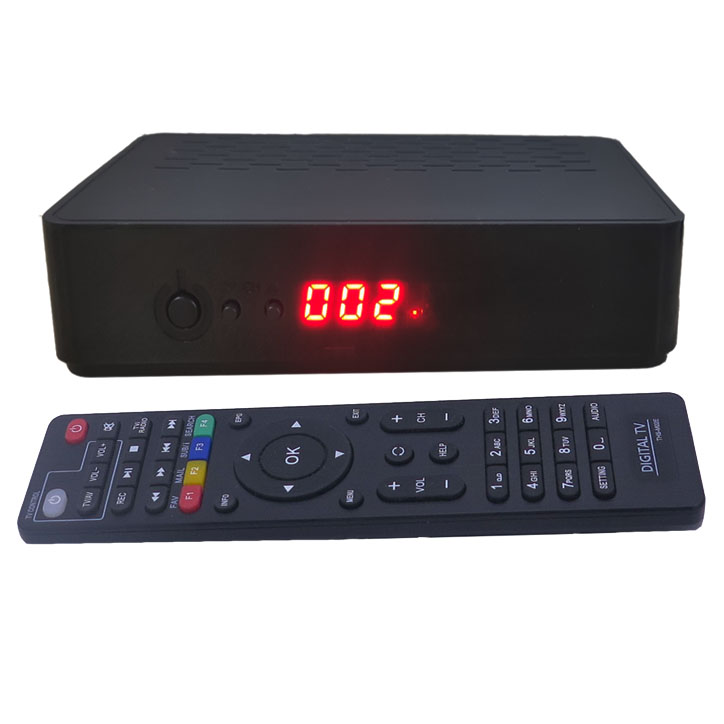

Front panel
-Display: 3 LED Indicator, Power Red LED, Lock Green LED
-Button:CH+，CH-
Video Decoding
●H.264 BP(with noASO/FMO),MP& HP@L3/L4.1
●HEVC/H.265 MP@level 4.0 High tier (M88CS8051T only )
●MPEG-2MP@MLHL
●AVS Jizhun profile@L6.0L4.0
●AVS Broadcast profile@L6.0/L4.0
●MPEG-4 SP Profile,Advanced Simple Profile@ Level 5 without GMC/Data Partitioning/Reversible vLc
●Xvid 1.3.2 without GMC and Dixwithout GMc
●H.263 baseline profile
Setup environment
Function temperature: 0-40 degree Celsius
Power consumption: Max 10w
Voltage: 12V/1A

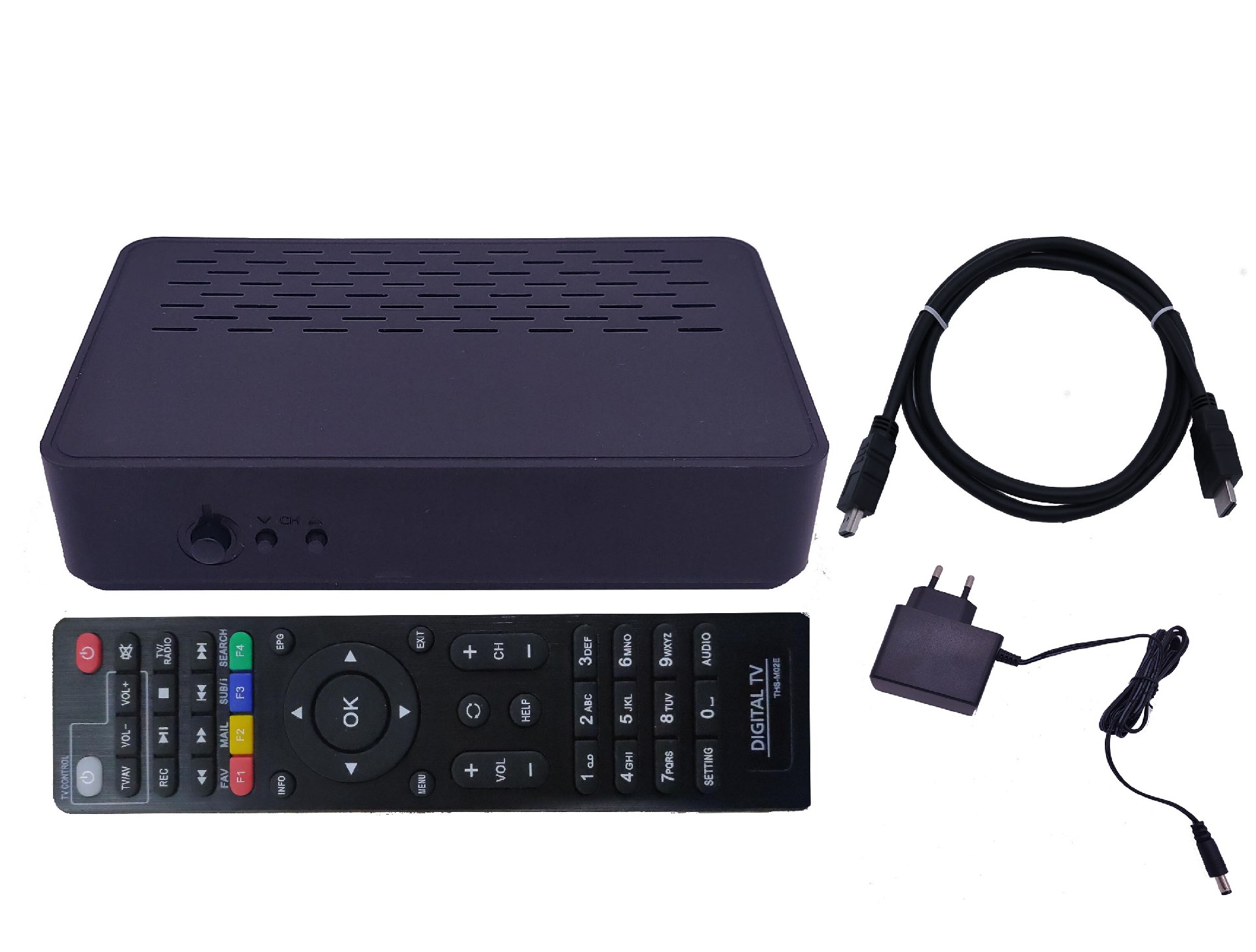

Proposed Accessories
Remote control unit
RCA Connect Cable Or HDMIl Cable
AAA Size Batteries
Audio Decoding
MPEG-1/2 Layer MIIII
MPEG-2/4 LC-AAC, MPEG-4 HEAAC@Level 4
Dolby AC3/AC3+ (optional)
Dimensions
W x H x D(mm): 140*83*32
Weight(kg):0.55
Packaging dimension(mm): 245*165*52
Weight include packaging(kg):0.6
Core System
Processor : M88Cc6000T/M88CC8201T
(High-performance dual MIPS CPU)
Broadcast tuners: 1 DVB-
Memory: 8MB Flash SOC Embedded 128MB DDR
STB up grade: Through OTA or USB Disk
Connectivity
Video: HDMl v1.4a
RCA out (CVBs, Audio L/R)
USB: 1xUSB2.0 host device
Tuner & Demodulator
-lnput Frequency :50MHz-860MHz
-Demadulator: 256,128,64,32 and 16QAM demodulation supported
-Symbol rates: 0.45~8.5MBauds
Front panel
-Display: 3 LED Indicator, Power Red LED, Lock Green LED
-Button:CH+，CH-
Video Decoding
●H.264 BP(with noASO/FMO),MP& HP@L3/L4.1
●HEVC/H.265 MP@level 4.0 High tier (M88CS8051T only )
●MPEG-2MP@MLHL
●AVS Jizhun profile@L6.0L4.0
●AVS Broadcast profile@L6.0/L4.0
●MPEG-4 SP Profile,Advanced Simple Profile@ Level 5 without GMC/Data Partitioning/Reversible VLS
●Xvid 1.3.2 without GMC and Dixwithout GMc
●H.263 baseline profile
Setup environment
Function temperature: 0-40 degree Celsius
Power consumption: Max 10w
Voltage: 12V/1A
Proposed Accessories
Remote control unit
RCA Connect Cable Or HDMIl Cable
AAA Size Batteries
Audio Decoding
MPEG-1/2 Layer I/II/III
MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4
Dolby AC3/AC3+ (optional)
Dimensions
W x H x D(mm): 140*83*32
Weight(kg):0.55
Packaging dimension(mm): 245*165*52
Weight include packaging(kg):0.6
